Orange Pi and Arducam System

This section covers how to wire the Orange Pi and Arducam System. This is a vision system that we use as an alternative to the Limelight system.

Orange Pi

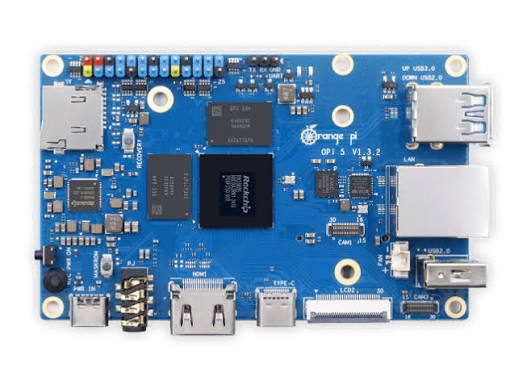

Figure 1

The Orange Pi (Figure 1) is a high-speed single board computer powered by a buck converter which is connected to the PDH. It requires 5 volts to power it this is where the buck converter comes in.

Buck Converter
